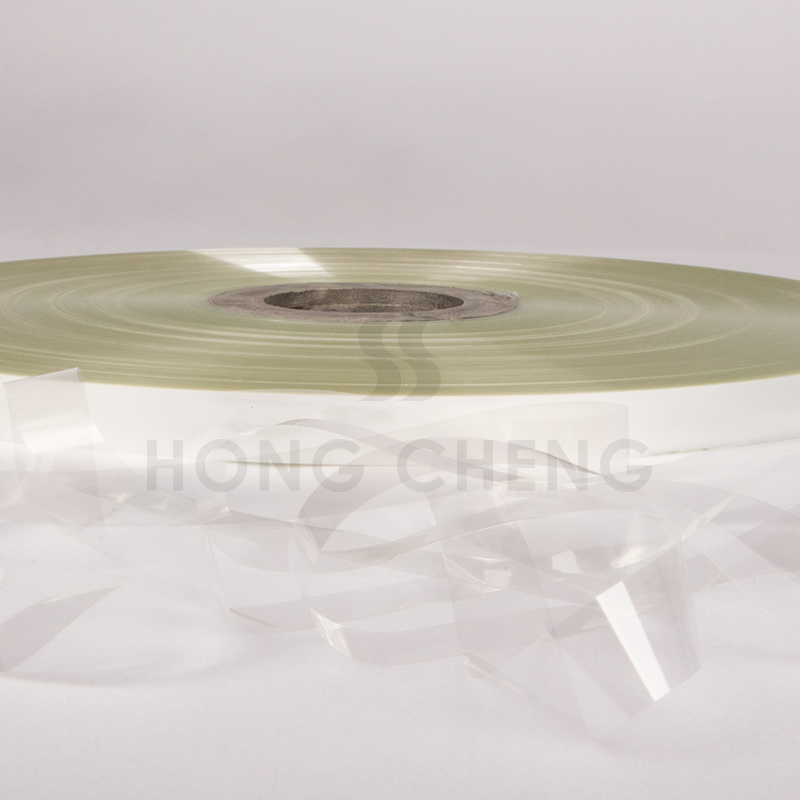

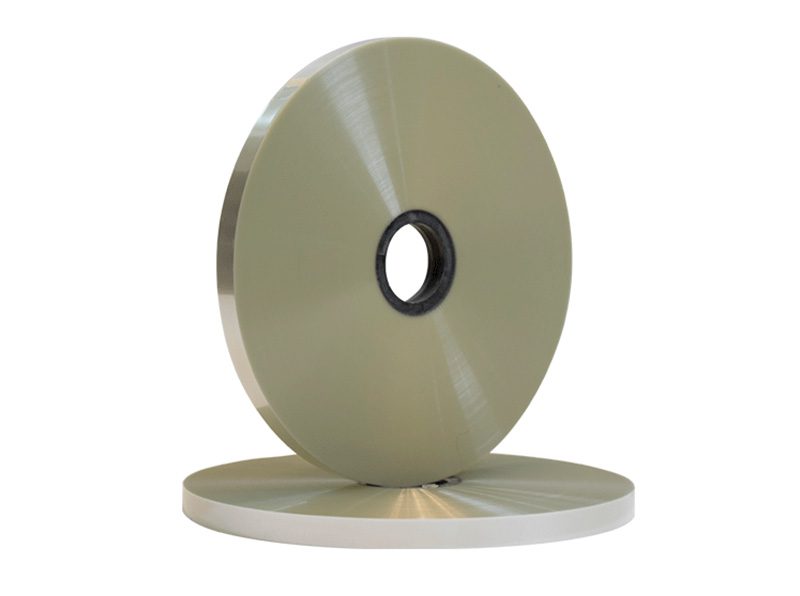

PET Polyester belt

　　Product Description: Mylar tape/Polyester tape use high tensile strength and electrical characteristics with bi-axially polyester material, providing cable coating and insulation of internal structures.

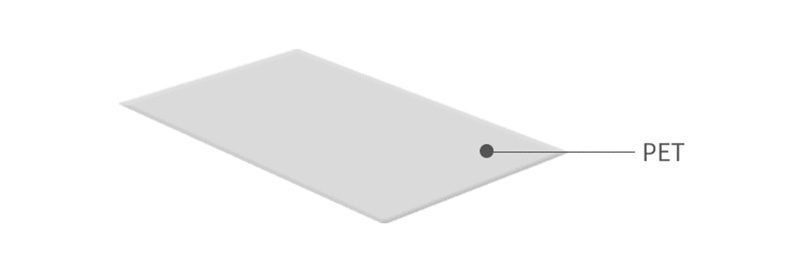

< PRODUCT STRUCTURE >

Specification

Elongation （%）

Tensile strength （kgf/m²）

Basis weight （g/m²）

12μm

35↑

0.18↑

18.25

15μm

35↑

0.22↑

20.25

25μm

35↑

0.37↑

33.75

38μm

35↑

0.58↑

51.30

50μm

35↑

0.75↑

79.65

75μm

35↑

1.12↑

86.40

In addition to the above specifications, other special requirements can design according to customers

　　Color: Transparent

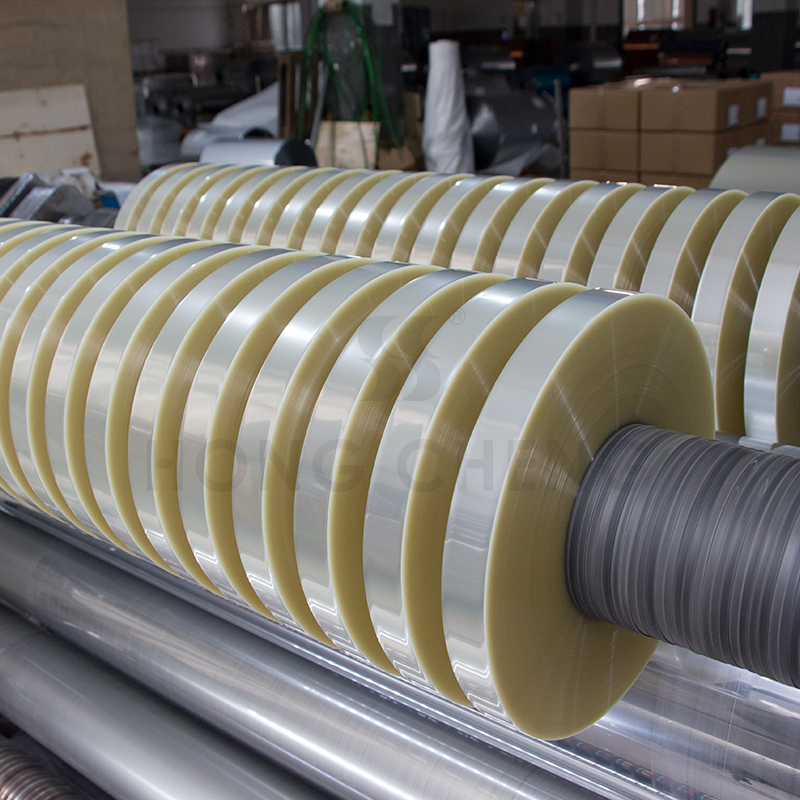

　　Slitting and packaging: Slitting minimum width of 2mm, adopt shaft packing form; conventional slitting width is 5mm, bore size is 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.

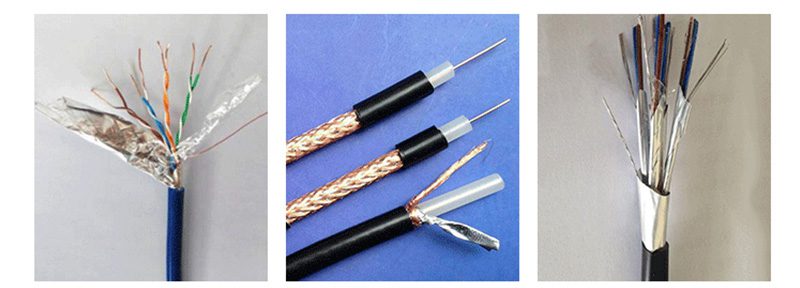

< APPLICATION >

Cables used
in mines

Coaxial cable

High temperature cable

　　Application: Suitable for composite wire materials with multiple structures, like signal transmission lines, coaxial cable, control cable, and other insulation usage with interior wire materials.

　　Electrical characteristics: Temperature resistance of 180 ° c, with high mechanical strength, excellent insulation shielding property, high temperature resistance, low temperature resistance, is an ideal wrapping material, mainly used as insulation and isolation, as well as increased impedance.
