Single side aluminum foil composite

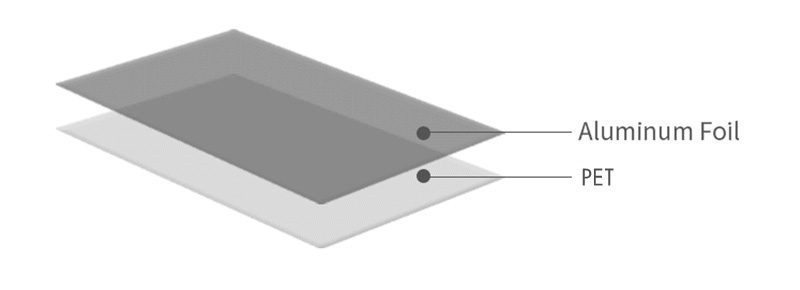

　　Product Description: The raw material of aluminum polyester tape is soft aluminum foil and a polyester film, compound with intaglio coating, slitting and rolling when aluminum foil polyester was done, the structure is a layer of aluminum foil and a layer of polyester film. (AL/PET)

　　Aluminum foil polyester include: Aluminum polyester tape (single side), Aluminum polyester tape (double side), Free edge aluminum polyester tape, Heat sealed aluminum polyester tape, Aluminum polyester foil tape, Composite aluminum-plastic tape.

< PRODUCT STRUCTURE >

Specification	Composition		Elongation （%）	Tensile strength （Mpa）	Basis weight （g/m²）	Peel strength (N/cm)
Specification	AL	PET	Elongation （%）	Tensile strength （Mpa）	Basis weight （g/m²）	Peel strength (N/cm)
22±10%μm	7μm	12μm	35↑	60↑	39±10%	6.3↑
25±10%μm	7μm	15μm	35↑	60↑	43±10%	6.3↑
30±10%μm	7μm	20μm	35↑	60↑	51±10%	6.3↑
25±10%μm	9μm	12μm	35↑	60↑	45±10%	6.3↑
27±10%μm	9μm	15μm	35↑	60↑	49±10%	6.3↑
35±10%μm	9μm	23μm	35↑	60↑	61±10%	6.3↑
27±10%μm	12μm	12μm	20↑	60↑	53±10%	6.3↑
30±10%μm	15μm	12μm	20↑	60↑	62±10%	6.3↑
43±10%μm	20μm	20μm	20↑	60↑	86±10%	6.3↑
53±10%μm	25μm	25μm	20↑	60↑	107±10%	6.3↑
70±10%μm	40μm	25μm	15↑	60↑	147±10%	6.3↑
65±10%μm	50μm	12μm	10↑	60↑	156±10%	6.3↑
73±10%μm	50μm	20μm	15↑	60↑	167±10%	6.3↑
In addition to the above specifications, other special requirements can design according to customers
