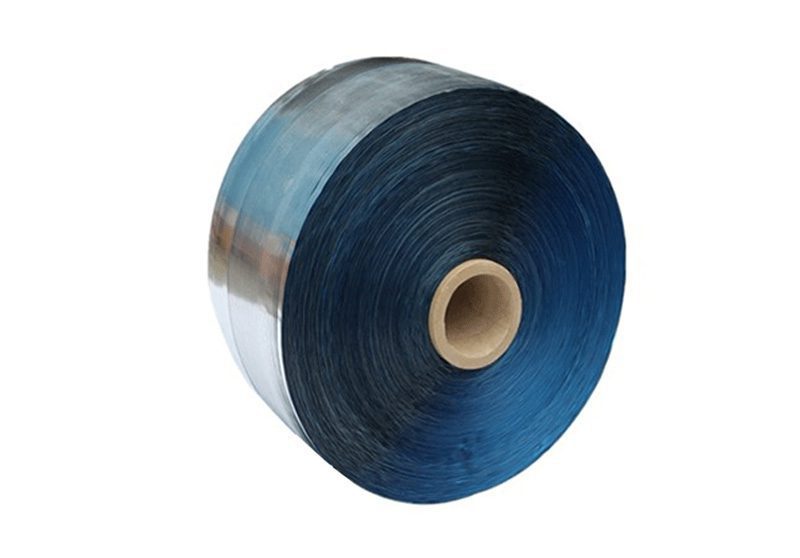

Shaft aluminum foil
myla belt

　　Product Description: The raw material of aluminum polyester tape is soft aluminum foil and a polyester film, compound with intaglio coating, slitting and rolling when aluminum foil polyester was done, the structure is a layer of aluminum foil and a layer of polyester film. (AL/PET)

　　Aluminum foil polyester include: Aluminum polyester tape (single side), Aluminum polyester tape (double side), Free edge aluminum polyester tape, Heat sealed aluminum polyester tape, Aluminum polyester foil tape, Composite aluminum-plastic tape.

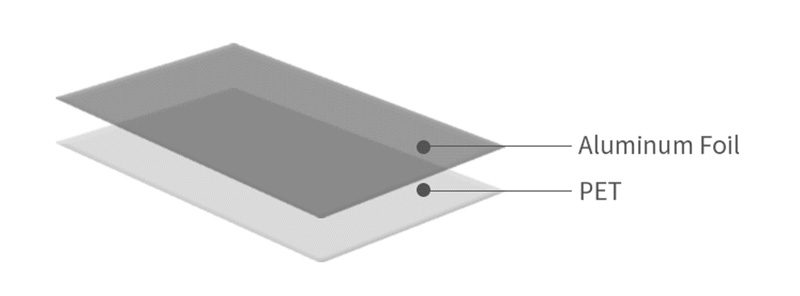

< PRODUCT STRUCTURE >

Specification	Composition		Elongation （%）	Tensile strength （Mpa）	Basis weight （g/m²）	Peel strength (N/cm)
Specification	AL	PET	Elongation （%）	Tensile strength （Mpa）	Basis weight （g/m²）	Peel strength (N/cm)
22±10%μm	7μm	12μm	35↑	60↑	39±10%	6.3↑
25±10%μm	7μm	15μm	35↑	60↑	43±10%	6.3↑
30±10%μm	7μm	20μm	35↑	60↑	51±10%	6.3↑
25±10%μm	9μm	12μm	35↑	60↑	45±10%	6.3↑
27±10%μm	9μm	15μm	35↑	60↑	49±10%	6.3↑
35±10%μm	9μm	23μm	35↑	60↑	61±10%	6.3↑
27±10%μm	12μm	12μm	20↑	60↑	53±10%	6.3↑
30±10%μm	15μm	12μm	20↑	60↑	62±10%	6.3↑
43±10%μm	20μm	20μm	20↑	60↑	86±10%	6.3↑
53±10%μm	25μm	25μm	20↑	60↑	107±10%	6.3↑
70±10%μm	40μm	25μm	15↑	60↑	147±10%	6.3↑
65±10%μm	50μm	12μm	10↑	60↑	156±10%	6.3↑
73±10%μm	50μm	20μm	15↑	60↑	167±10%

Specification	Composition			Elongation （%）	Tensile strength （Mpa）	Basis weight （g/m²）	Peel strength (N/cm)
Specification	AL	PET	AL	Elongation （%）	Tensile strength （Mpa）	Basis weight （g/m²）	Peel strength (N/cm)
32μm	7μm	12μm	7μm	35↑	6.3↑	61±10%	6.3↑
35μm	7μm	15μm	7μm	35↑	6.3↑	65±10%	6.3↑
36μm	9μm	12μm	9μm	35↑	6.3↑	74±10%	6.3↑
49μm	9μm	25μm	9μm	35↑	60↑	92±10%	6.3↑
55μm	12μm	15μm	12μm	35↑	60↑	94±10%	6.3↑
53μm	12μm	23μm	12μm	35↑	60↑	105±10%	6.3↑
61μm	15μm	25μm	15μm	20↑	60↑	122±10%	6.3↑
In addition to the above specifications, other special requirements can design according to customers

< APPLICATION >

Cables used
in mines

Coaxial cable

High temperature cable

　　Application: Apply to magnetic field with non-electromagnetic or precipitation static, such as communication cables, data cable, coaxial cable, internet cable and shielding of signal cable, can match with coating, it can be used in assemble shielding and grounding when aluminum foil polyester was cut.

　　Electrical characteristics: mainly as an anti-electromagnetic interference is usually the case in 1-100MHZ, shielding around 70dB attenuation can be achieved with Mylar foil.
