Copper foil polyester belt

　　Product Description: Copper polyester tape also called copper plastic composite tape, consist of copper foil、PET film and adhesive, with oxygen properties in low surface, can be attached with a variety of different base materials, such as metal and insulation materials etc. Widely used in the field, such as communication, computer, radio and other electronic components. And shielding materials for cable, FPC wire board and soft wire board. Cause rolled copper foil also called electrolytic copper foil with high strength, high flexibility, good ductility, good conductivity, heat dissipation and gloss characteristics it becomes a necessary raw materials of some products.

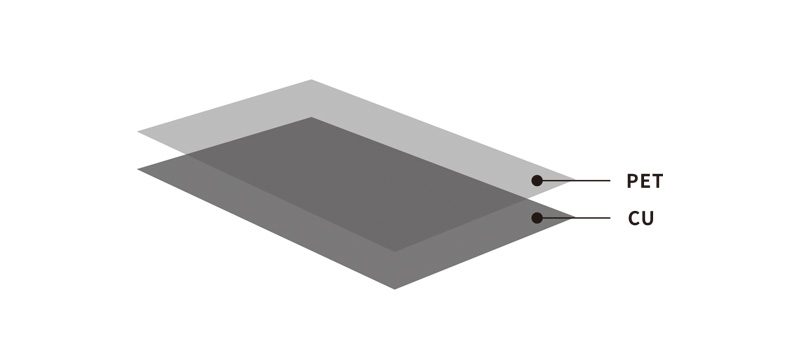

< PRODUCT STRUCTURE >

Specification	Composition		Elongation （%）	Tensile strength （Mpa）	Basis weight （g/m²）	Peel strength (N/cm)
Specification	Cu	PET	Elongation （%）	Tensile strength （Mpa）	Basis weight （g/m²）	Peel strength (N/cm)
30μm	15μm	12μm	8↑	100↑	155	3↑
33μm	18μm	12μm	8↑	100↑	182	3↑
46μm	18μm	25μm	8↑	100↑	200	3↑
35μm	20μm	12μm	8↑	100↑	199	3↑
48μm	20μm	25μm	8↑	100↑	218	3↑
53μm	25μm	25μm	8↑	100↑	262	3↑
103μm	25μm	75μm	8↑	100↑	332	3↑
In addition to the above specifications, other special requirements can design according to customers
