Double-sided aluminum foil composite material

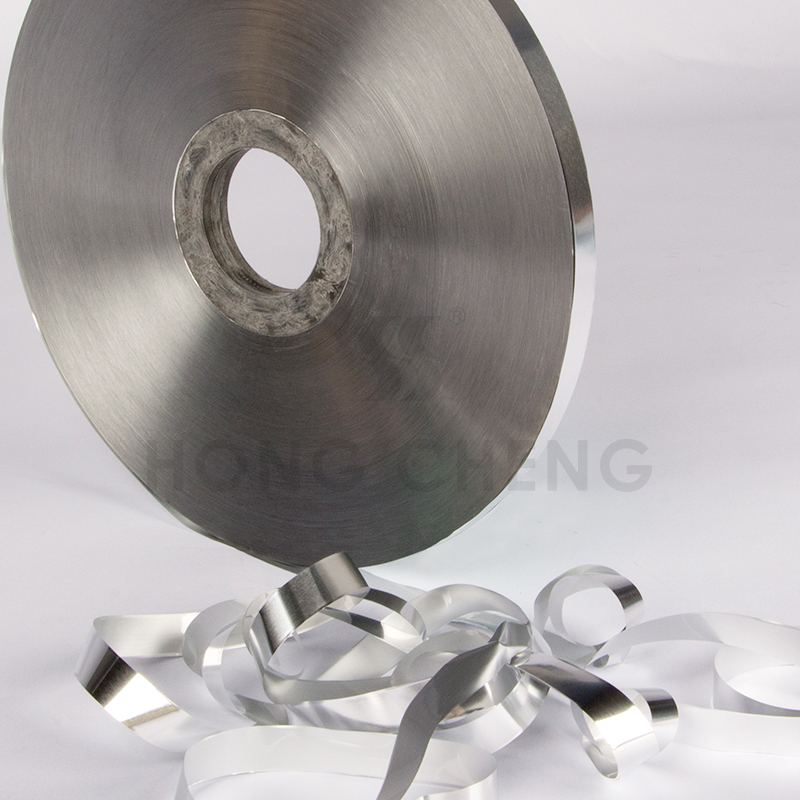

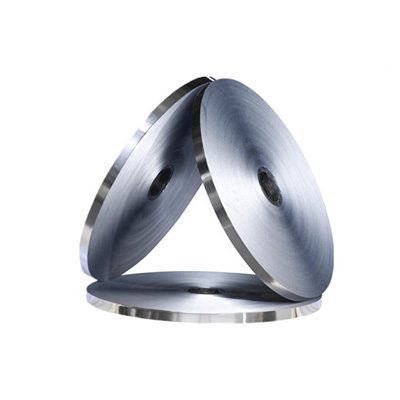

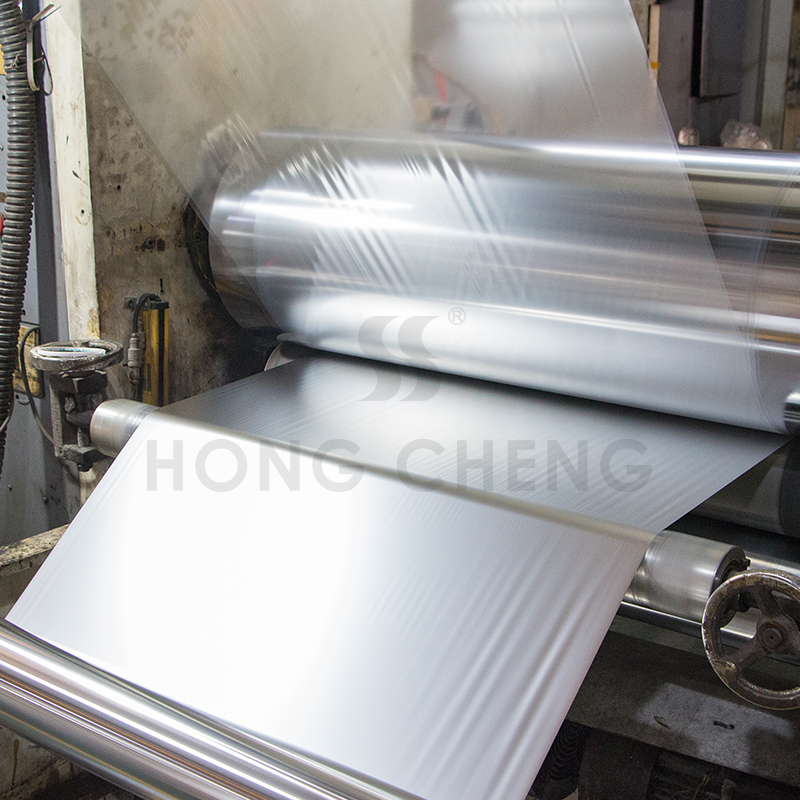

　　Product Description: The raw material of aluminum polyester tape is soft aluminum foil and a polyester film, compound with intaglio coating, slitting and rolling when aluminum foil polyester was done; the structure is a layer of aluminum foil in the two sides and a layer of polyester film in the middle. (AL/PET)

< PRODUCT STRUCTURE >

Specification	Composition			Elongation （%）	Tensile strength （Mpa）	Basis weight （g/m²）	Peel strength (N/cm)
Specification	AL	PET	AL	Elongation （%）	Tensile strength （Mpa）	Basis weight （g/m²）	Peel strength (N/cm)
32μm	7μm	12μm	7μm	35↑	6.3↑	61±10%	6.3↑
35μm	7μm	15μm	7μm	35↑	6.3↑	65±10%	6.3↑
36μm	9μm	12μm	9μm	35↑	6.3↑	74±10%	6.3↑
49μm	9μm	25μm	9μm	35↑	60↑	92±10%	6.3↑
55μm	12μm	15μm	12μm	35↑	60↑	94±10%	6.3↑
53μm	12μm	23μm	12μm	35↑	60↑	105±10%	6.3↑
61μm	15μm	25μm	15μm	20↑	60↑	122±10%	6.3↑
In addition to the above specifications, other special requirements can design according to customers

　　Color: Common color is blue and silver, can also be made red, green, gold etc, according to customer’s needs, and can also printing and printed twill according to customer needs.

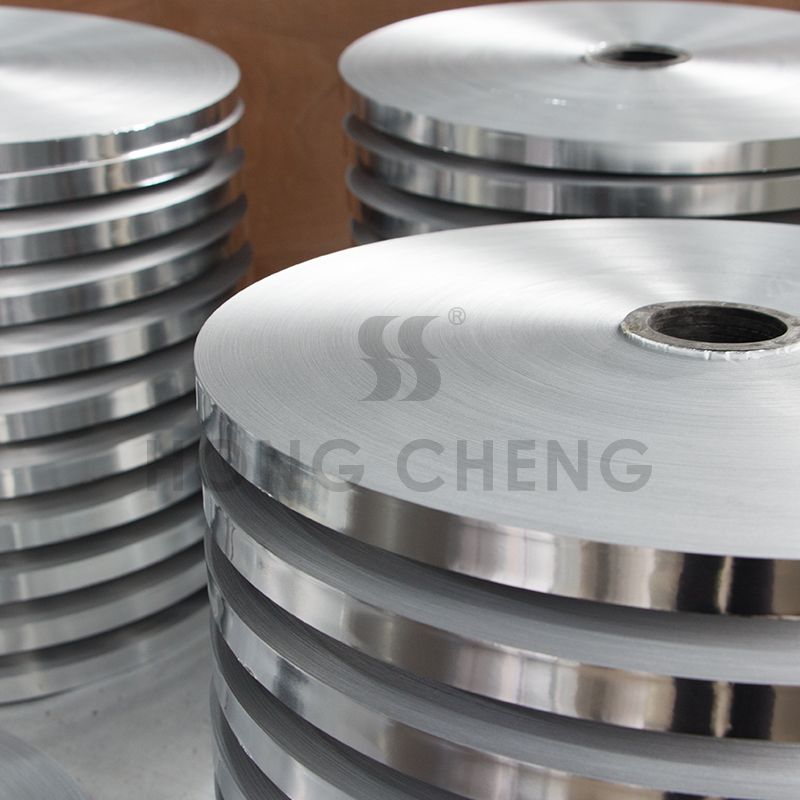

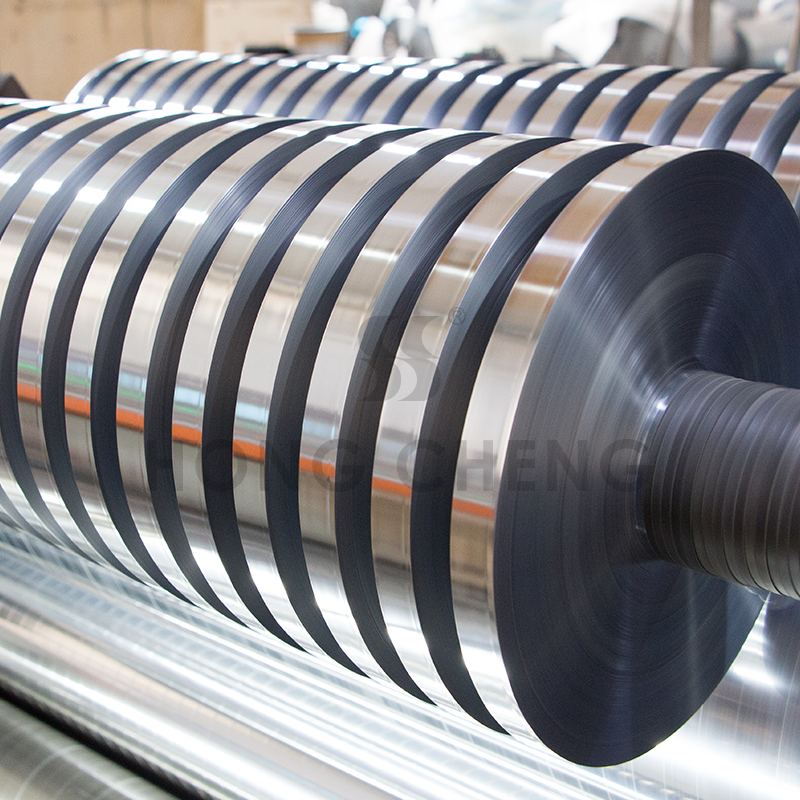

　　Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.

< APPLICATION >

Cables used
in mines

Coaxial cable

High temperature cable

　　Application: Apply to magnetic field with non-electromagnetic or precipitation static, such as communication cables, data cable, coaxial cable, internet cable and shielding of signal cable, can match with coating, it can be used in assemble shielding and grounding when aluminum foil polyester was cut.

　　Electrical characteristics: mainly as an anti-electromagnetic interference is usually the case in 1-100MHZ, shielding around 70dB attenuation can be achieved with Mylar foil.
